Sudsgrid 40 Permeable Pavers

Sudsgrid plastic porous paver for permeable grass or gravel surfaces

Robust porous paver design allows formation of high strength free draining surface for reinforced grass or gravel fill.

Sudsgrid 40 Permeable Pavers

Sudsgrid is an economical interlocking cellular porous paver for sustainable drainage applications (SuDS). Sudsgrid is suitable for a wide range of trafficked applications where a stabilised, free-draining grass or gravel surface is required.

Applications

Benefits

  • High load bearing capacity
  • Infilled with grass or gravel to suit project requirements
  • Retains gravel within the cells
  • Provides a permeable trafficable surface
  • SuDs source control - storm water management
  • Protects grass from wear, rutting and smearing
  • 100% recycled plastic
  • Rounded & robust 3-5mm cell walls for safe edges
  • Lightweight (0.9 - 1kg per panel)
  • Cost-effective option for angular gravel infill up to 20mm

Sudsgrid porous plastic paver applications include grass and gravel car parks, emergency access routes, maintenance vehicle access roads, cycle paths, retained gravel driveways, parking areas and pedestrian paths.

Grass reinforcement using ABG Sudsgrid 40 permeable paving grids

Grass reinforcement using ABG Sudsgrid 40 permeable paving grids

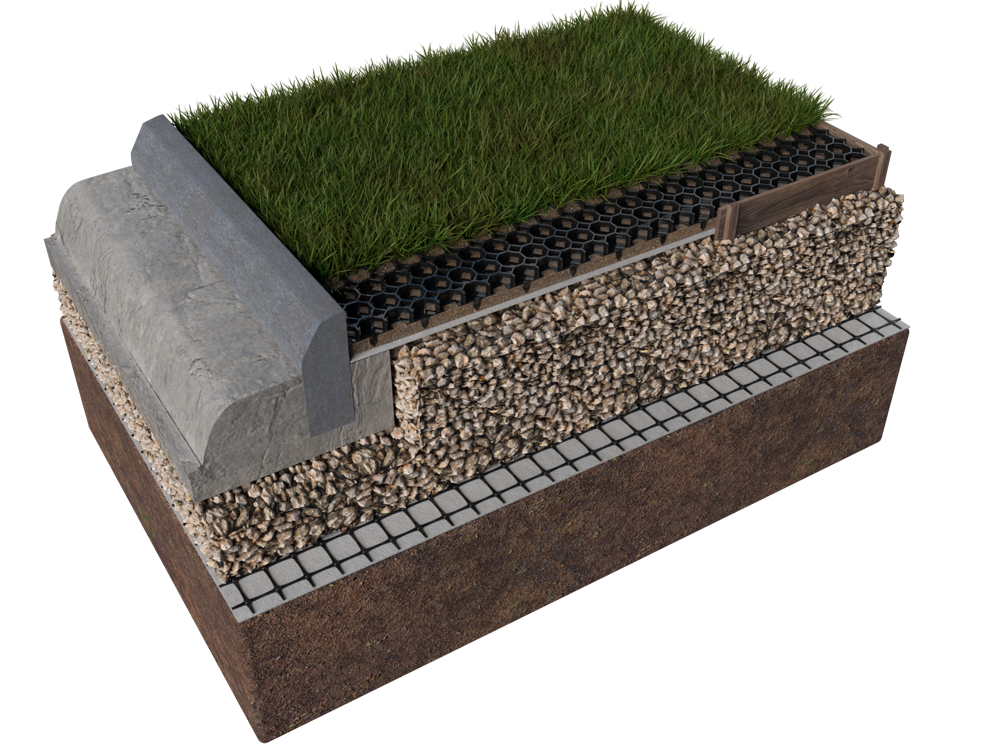

Sudsgrid offers a cost-effective, robust and aesthetic solution for many applications where gravel retention is required in frequent-use applications and where source-control of surface water forms part of a Sustainable Drainage System (SuDS) design. For a reinforced grass surface, the interlocking grass pavers can be filled with a sandy-soil rootzone and seeded to produce a reinforced grass surface suitable for occasional use by vehicles and pedestrian traffic.

Retained gravel, free draining ground reinforcement using ABG Sudsgrid 40 permeable paving grids

Retained gravel, free draining ground reinforcement using ABG Sudsgrid 40 permeable paving grids

ABG Sudsgrid 40 permeable paving grids for a retained gravel driveway

Gravel filled driveway application

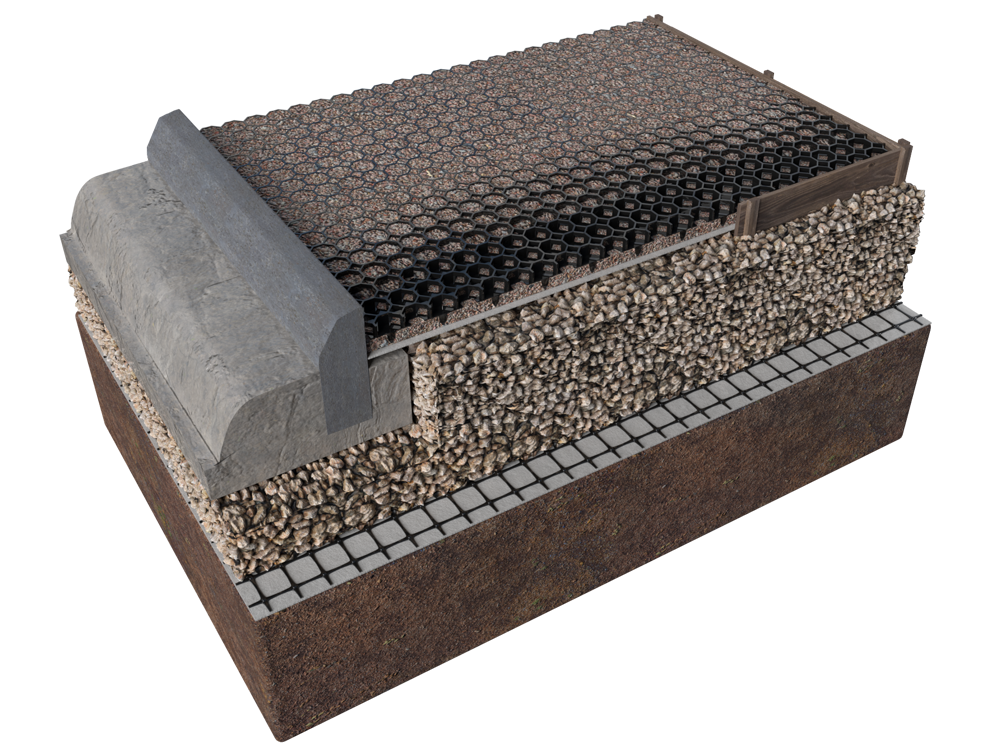

Sudsgrid permeable plastic cellular paving grids are designed to be installed onto a free-draining stone sub-base construction incorporating Geogrids to minimise material and construction costs, the paving units may also be considered for ‘reduced-dig’ applications where the depth of excavation has been limited due to archaeological or SSSI concerns, or in tree-root protection zones.

ABG Sudsgrid 40 permeable plastic grids being filled
ABG Sudsgrid 40 porous pavers for free-draining car parking

ABG Sudspave 40

Open-celled design allows grass to grow both vertically and horizontally

ABG Sudspave 40

Green grids available to blend in with grass

RECENT PROJECTS

SuDS Porous Paved Car Park, Ascot Heatherwood Hospital, UK
Ascot Heatherwood Hospital
Boston barrier access routes
Boston barrier access routes
Truro park & ride
Truro park & ride

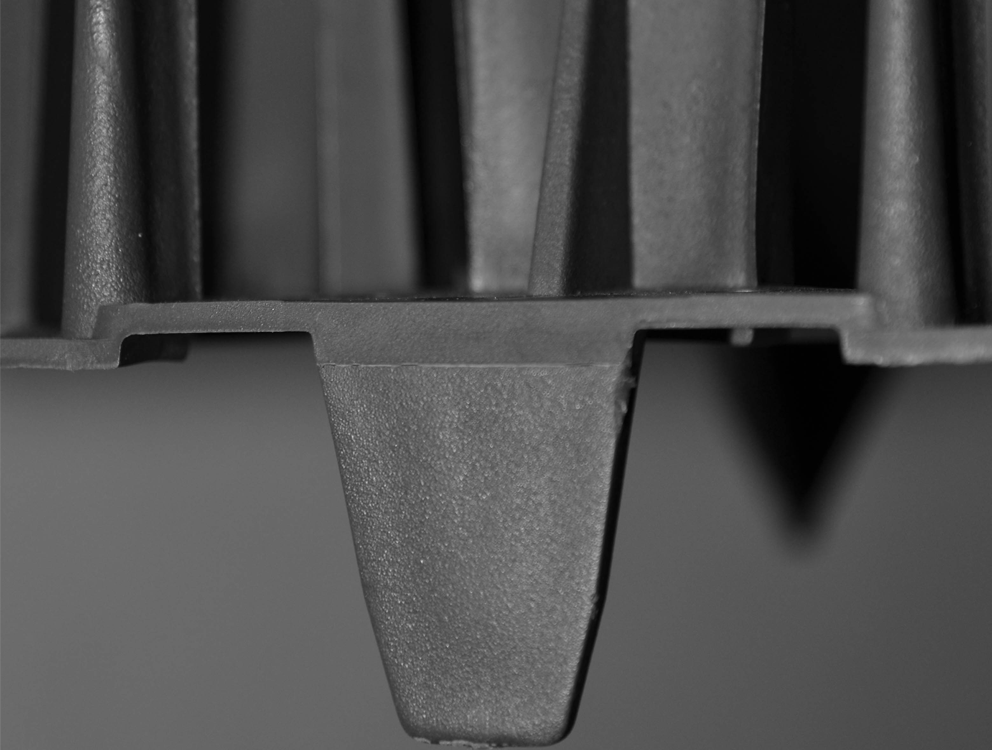

Interconnection between individual pavers is provided by means of spike and loop connectors around the edge of each paving unit. Thanks to the play at the connection between the spike and loop, the grid may be laid on gently curving surfaces

Once installed, the porous plastic paving units can be filled with either an angular gravel for a hard wearing surface or with a formulated growing medium into which grass seed is sown to provide a vegetated finish suitable for occasional trafficking

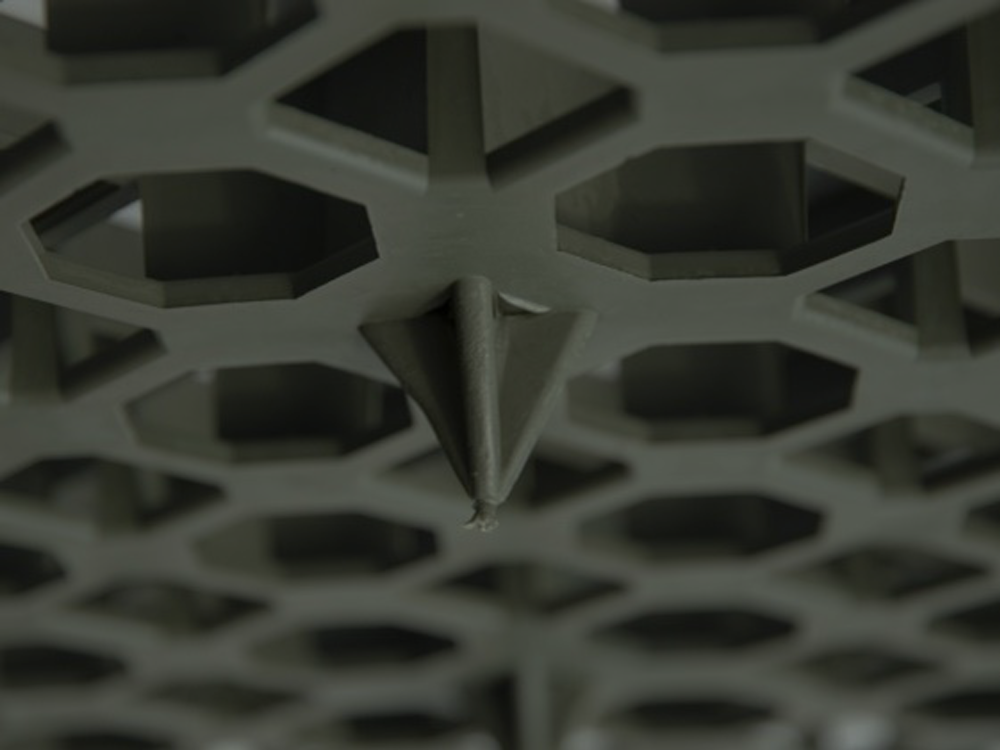

ABG Sudsgrid 40 ground hook and loop ground spikes
ABG Sudsgrid 40 plastic grigs with integral ground spikes

Simple and stable interconnection of panels

Typical Client Profile:

Within a Sudsgrid construction, we strongly recommend following our design and installation guidelines where the following products may also form part of the specified construction profile:

Design & Installation Guidance

Permeable Paving - Carbon Footprint Saving

The use of ABG Sudsgrid permeable paving system can save up to 54% on the carbon footprint compared with traditional permeable block paving methods:

Click to read the full carbon footprint assessment.
The use of ABG Sudspave permeable paving system can save up to 63% on the carbon footprint compared with traditional permeable block paving methods:
